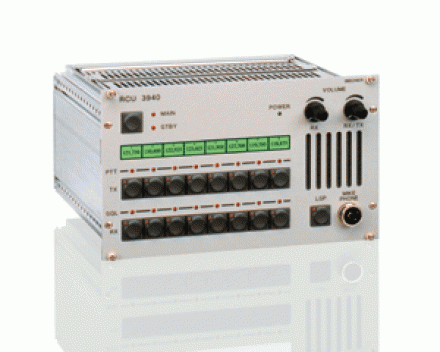

The RCU 3940 is a console-mount remote

control unit for ATC operator consoles,

featuring the capability to remote-control eight

transmitters and eight receivers.

It is also possible by connecting several

RCU 3940 in parallel to access the radio

Channels from various workstations.

Other features are:

• Inputs and outputs: 600 Ohm balanced
• Supply voltage: 24 VDC +/-15%, 1.1 A
• Microprocessor-based operation
• PC-based configuration
• LED indication on keys
• PTT activation selectable via jumper
• Control over antenna relays
• Built-in loudspeaker
• Level: adjustable from -15 dBm to +10 dBm
• Dimensions: 213 x 128,4 x 175 mm (W x H x D)
• Weight: 1.8 kgs
• Operating temperature range: 0 C to 55 C
